What is CNC Machining and How does CNC machining work?

What is CNC Machining and How does CNC machining work?

CNC machining, also called numerical control machining, refers to the processing performed with numerical control processing tools. Because CNC machining is controlled by computer after programming, CNC machining has the advantages of stable processing quality, high processing accuracy, high repeatability, complex surface processing, and high processing efficiency. In the actual processing process, human factors and operating experience will largely affect the final processing quality.

CNC machining history

CNC machining technology originated from the needs of the aviation industry. It was proposed by an American helicopter company in the late 1940s.
The original idea for CNC machine tools, the Massachusetts Institute of Technology developed the two-axis CNC milling machine in 1952.

This kind of CNC milling machine has been used for processing aircraft parts since the mid-1950s. In the 1960s, CNC machining prototyping and programming work became more and more mature and perfect.

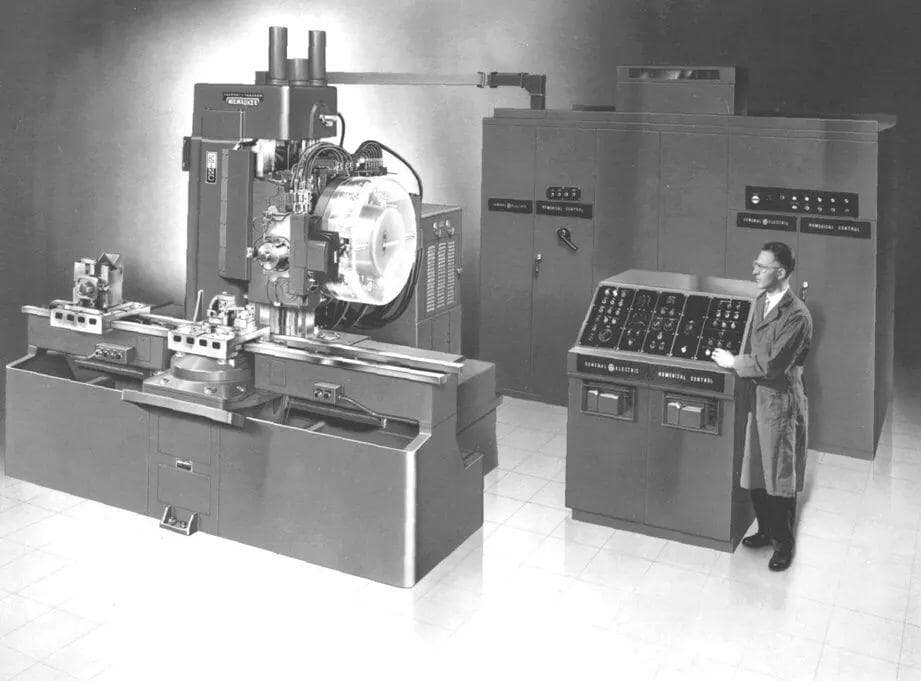

CNC machining history

1. How to divide the CNC machining process?

The division of CNC machining processes can generally be carried out in the following ways:

a. The method of tool concentration and sequencing is to divide the process according to the tool used, and use the same tool CNC to process all the parts that can be completed on the part. In other parts that they can finish with the second knife and the third. In this way, the number of tool changes can be reduced, the idle time can be compressed, and unnecessary positioning errors can be reduced.

b. Sorting method of processing parts For parts with a lot of CNC machining content, the processing part can be divided into several parts according to its structural characteristics, such as inner shape, shape, curved surface or plane. Generally, the plane and positioning surface are processed first, and then the holes are processed; the simple geometric shapes are processed first, and then the complex geometric shapes are processed; the parts with lower precision are processed first, and then the parts with higher precision requirements are processed.

c. Sequence method of rough and finish CNC machining For parts that are prone to CNC machining deformation, it is necessary to correct the shape due to the possible deformation after rough machining. separate. To sum up, when dividing the process, it is necessary to flexibly grasp the structure and manufacturability of the parts, the function of the machine tool, the content of the CNC machining of the parts, the number of installations and the production organization of the unit. In addition, it is recommended to adopt the principle of process concentration or the principle of process dispersion, which should be determined according to the actual situation, but must strive to be reasonable.

2. What principles should be followed in the arrangement of CNC machining sequence?

The arrangement of the processing sequence should be considered according to the structure of the part and the condition of the blank, as well as the need for positioning and clamping. The key point is that the rigidity of the workpiece is not damaged. The sequence should generally be carried out according to the following principles:

  1. a. The CNC machining of the previous process cannot affect the positioning and clamping of the next process, and the processing process of general machine tools interspersed in the middle should also be considered comprehensively.

  2. b. Firstly carry out the process of inner shape and inner cavity, and then carry out the process of shape processing.

  3. c. It is better to connect the same positioning and clamping method or the same tool CNCmachining process to reduce the number of repeated positioning, the number of tool changes and the number of moving the pressure plate.

  4. d. For multiple processes in the same installation, the process with less rigid damage to the workpiece should be arranged first.

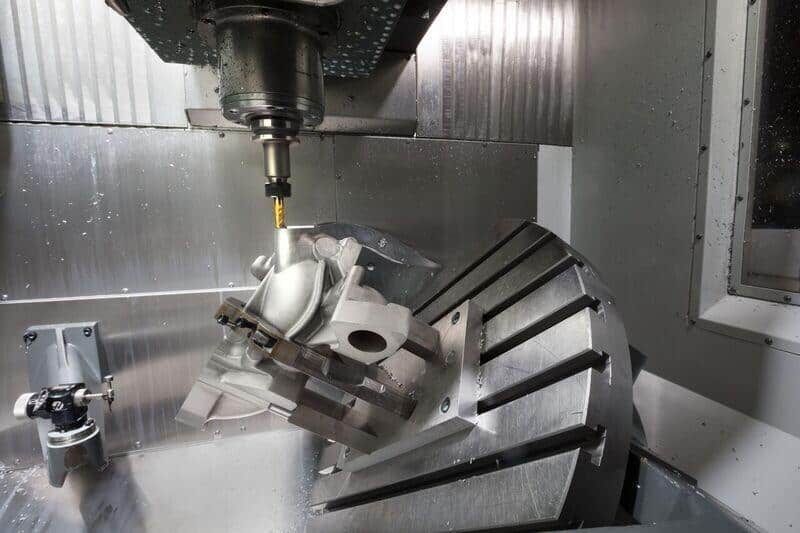

CNC machining processes

3. What aspects should be paid attention to when determining the workpiece clamping method?

The following three points should be paid attention to when determining the positioning datum and clamping scheme:

a. Strive to unify the benchmarks of design, process, and programming calculation.
b. Minimize the number of clamping times, and try to achieve all the surfaces to be processed by CNC after one positioning.
c. Avoid using the machine-occupied manual adjustment scheme.
d. The fixture should be open, and its positioning and clamping mechanism cannot affect the tool movement in CNC machining (such as collision). When encountering such a situation, it can be clamped by using a vise or adding screws to the bottom plate.

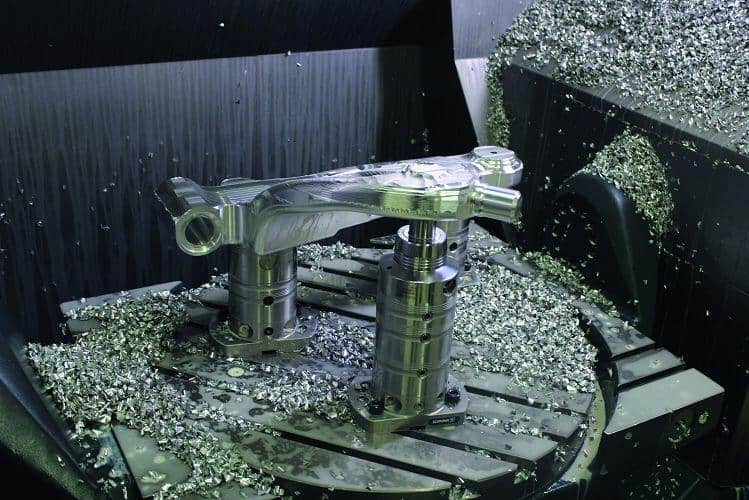

workpiece clamping
  1. How to determine the reasonableness of the tool setting point? What is the relationship between the workpiece coordinate system and the programming coordinate system?

1. The tool setting point can be set on the part to be processed, but note that the tool setting point must be the reference position or the part that has been finished. Sometimes the tool setting point is destroyed by CNC after the first process, which will cause the second There is no way to find the tool setting points in the first process and later, so when setting the tool in the first process, pay attention to setting up a relative tool setting position at a place that has a relatively fixed size relationship with the positioning reference, so that the relative positional relationship between them can be Find the original tool setting point. This relative tool setting position is usually set on the machine tool table or fixture. The selection principles are as follows:

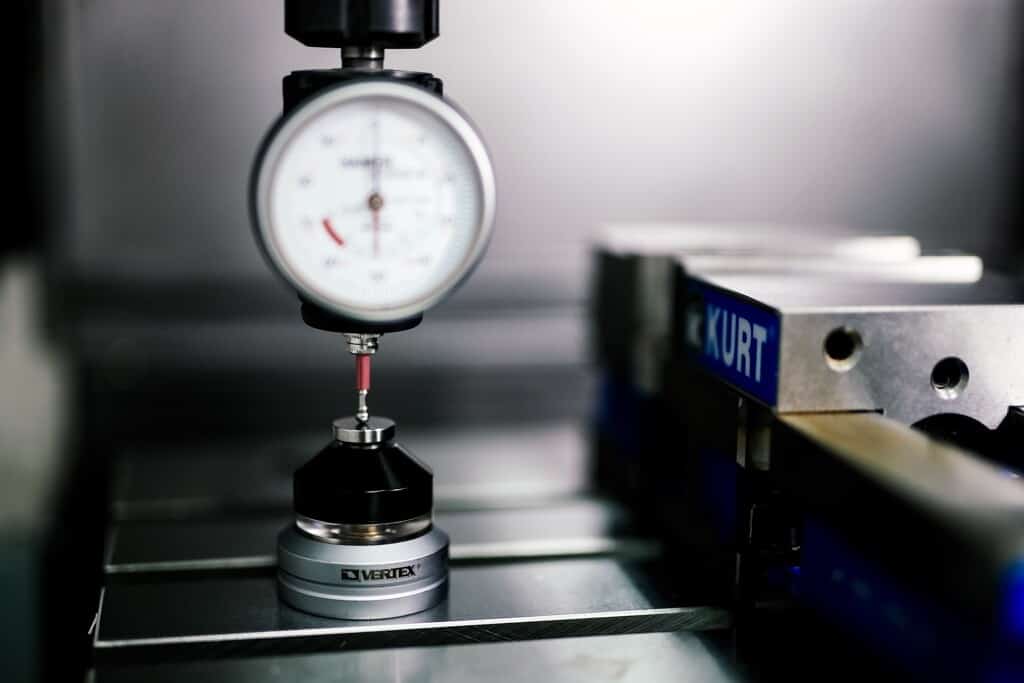

programming coordinate system

a) It is easy to find the alignment.
b) Easy programming.
c) The tool setting error is small.
d) It is convenient and can be checked during processing.

2. The origin position of the workpiece coordinate system is set by the operator. It is determined by tool setting after the workpiece is clamped. It reflects the distance position relationship between the workpiece and the zero point of the machine tool. Once the workpiece coordinate system is fixed, it generally does not change. The workpiece coordinate system and the programming coordinate system must be unified, that is, the workpiece coordinate system and the programming coordinate system are consistent during processing.

5. How to choose the cutting route?

The tool path refers to the movement track and direction of the tool relative to the workpiece during NC machining. The reasonable choice of processing route is very important, because it is closely related to the CNC machining accuracy and surface quality of the parts. When determining the cutting route, the following points are mainly considered:

a. Guarantee the processing accuracy requirements of the parts.
b. It is convenient for numerical calculation and reduces programming workload.
c. Seek the shortest CNC machining route, reduce the empty tool time to improve CNC machining efficiency.
d. Minimize the number of program segments.
e. To ensure the roughness requirements of the workpiece contour surface after CNC machining, the final contour should be processed continuously in the last pass.
f. The route of cutting in and out (cutting in and out) of the tool should also be carefully considered to minimize tool marks left by stopping the tool at the contour (sudden change of cutting force causes elastic deformation), and avoid vertically falling on the contour surface. The knife scratches the workpiece.

6. How to monitor and adjust during CNC machining?

After the workpiece is aligned and the program debugging is completed, it can enter the automatic processing stage. In the process of automatic processing, the operator should monitor the cutting process to prevent workpiece quality problems and other accidents caused by abnormal cutting.The monitoring of the cutting process mainly considers the following aspects:

  1. a. Processing process monitoring The main consideration of rough machining is the rapid removal of excess allowance on the workpiece surface. During the automatic processing of the machine tool, according to the set cutting amount, the tool automatically cuts according to the predetermined cutting trajectory. At this time, the operator should pay attention to observe the change of cutting load in the process of automatic processing through the cutting load table, and adjust the cutting amount according to the bearing force of the tool to maximize the efficiency of the machine tool.

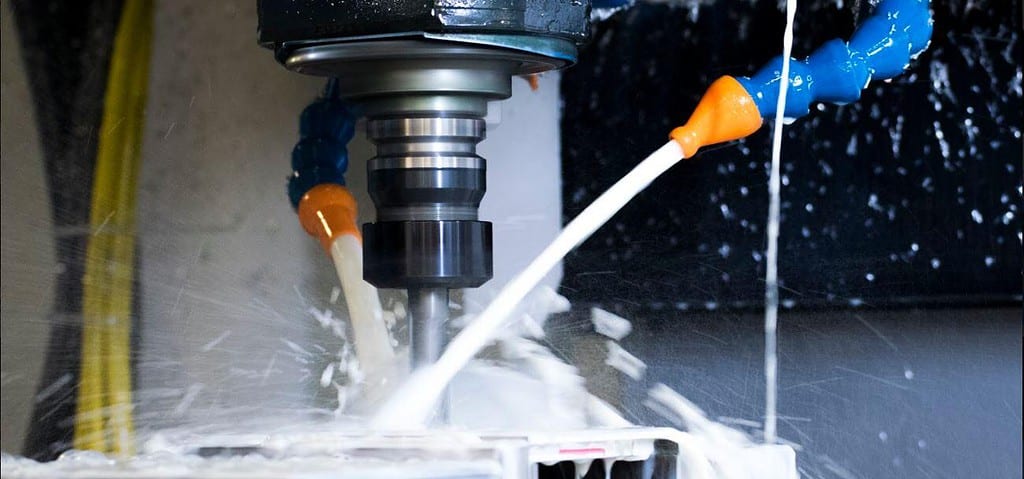

during CNC machining

b. Monitoring of cutting sound during the cutting process In the automatic cutting process, when cutting is generally started, the sound of the tool cutting the workpiece is stable, continuous, and brisk, and the movement of the machine tool is stable at this time. With the progress of the cutting process, when there are hard spots on the workpiece or the tool wears or the tool is clamped, the cutting process becomes unstable. The unstable performance is that the cutting sound changes, and the tool and the workpiece will collide with each other. sound, the machine tool will vibrate. At this time, the cutting amount and cutting conditions should be adjusted in time. When the adjustment effect is not obvious, the machine tool should be suspended to check the condition of the tool and the workpiece.

c. Finishing process monitoring Finishing is mainly to ensure the processing size and surface quality of the workpiece, the cutting speed is high, and the feed rate is large. At this time, attention should be paid to the influence of built-up edge on the processing surface. For cavity processing, attention should also be paid to overcutting and tool clearance at the corners. To solve the above problems, one is to pay attention to adjusting the spraying position of the cutting fluid, so that the machined surface is always in a cooling condition; the other is to pay attention to the quality of the machined surface of the workpiece, and avoid quality changes as much as possible by adjusting the cutting amount. If the adjustment still has no obvious effect, stop the machine and check whether the original program is reasonable. Special attention should be paid to the position of the tool during suspension inspection or shutdown inspection. If the tool stops during the cutting process, the sudden spindle stop will cause tool marks on the surface of the workpiece. Generally, stop should be considered when the tool leaves the cutting state.

The 5-axis CNC milling machine cutting aluminium

d. Tool monitoring The quality of the tool largely determines the processing quality of the workpiece. In the process of automatic machining and cutting, it is necessary to judge the normal wear status and abnormal damage status of the tool through sound monitoring, cutting time control, pause inspection during cutting, and workpiece surface analysis. According to the processing requirements, the tools should be processed in time to prevent processing quality problems caused by the tools not being processed in time.

7.How to choose the processing tool reasonably?

How many factors are there in the cutting amount? How many materials are there for knives? How to determine the rotation speed, cutting speed and cutting width of the tool?
a. Non-regrinding carbide end mills or end mills should be used for face milling. In general milling, try to use the second pass for processing. It is best to use the end mill for rough milling in the first pass, and move continuously along the surface of the workpiece. The width of each pass is recommended to be 60%–75% of the tool diameter.
b. End mills and end mills with carbide inserts are mainly used to process bosses, grooves and box mouth surfaces.
c. Ball knives and round knives (also known as round nose knives) are often used to process curved surfaces and beveled contours. The ball cutter is mostly used for semi-finishing and finishing. Round knives inlaid with carbide tools are mostly used for roughing.

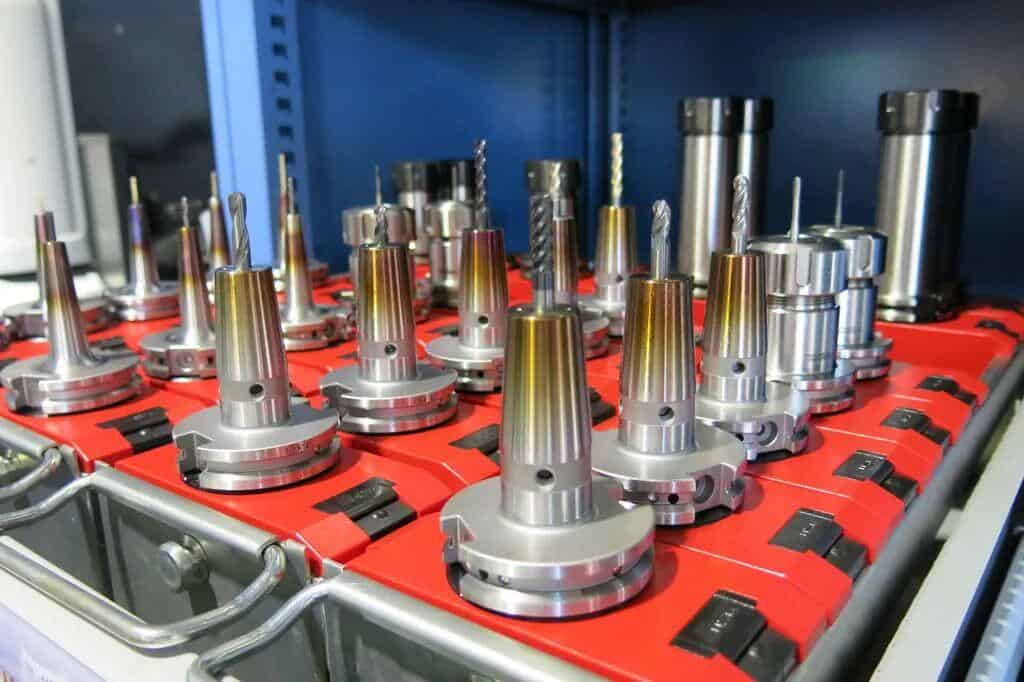

cnc machining tool

8.What is the function of the processing procedure sheet?

What should be included in the processing procedure sheet?
a. The processing program sheet is one of the contents of the CNC machining process design. It is also a procedure that the operator needs to follow and execute. It is a specific description of the processing program. The tool selected by the program should pay attention to the problems and so on.
b. In the processing program list, it should include: drawing and programming file name, workpiece name, clamping sketch, program name, tool used in each program, maximum cutting depth, processing nature (such as roughing or finishing) , theoretical processing time, etc.

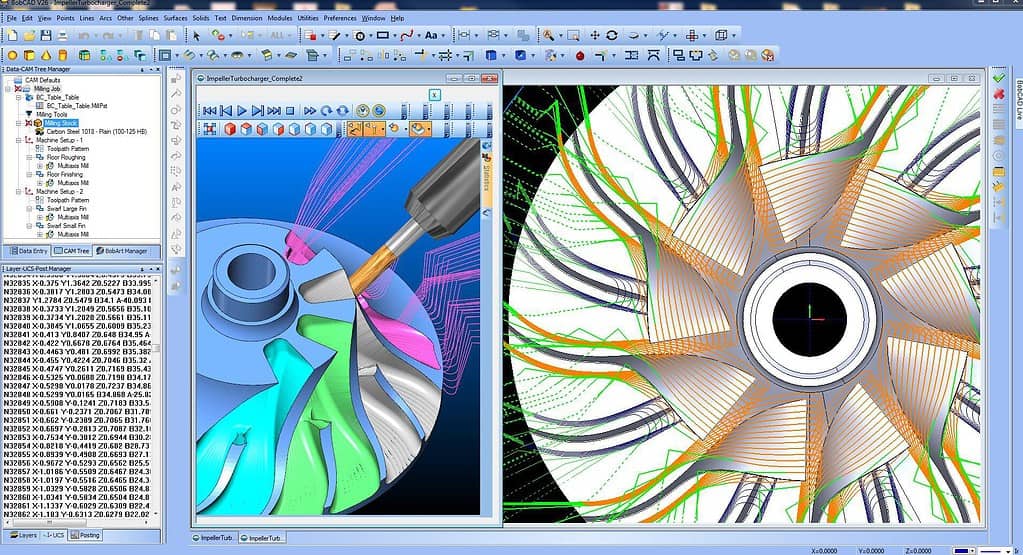

CNC machining process design

9. what preparations should be made before NC programming?

After determining the processing technology, you need to know before programming:
a. Workpiece clamping method;
b. The size of the workpiece blank – in order to determine the range of processing or whether multiple clamping is required;
c. The material of the workpiece – in order to choose which tool to use for processing;
d. What are the tools in stock? Avoid modifying the program because there is no such tool during processing. If you must use this tool, you can prepare it in advance.

10. What are the principles for setting the safety height in programming?

The principle of setting the safe height: generally higher than the highest surface of the island. Or set the programming zero point at the highest surface, which can also avoid the danger of knife collision to the greatest extent.

11.After the tool path is edited, why do we need to post-process it?

Because different machine tools can recognize different address codes and NC program formats, it is necessary to select the correct post-processing format for the machine tool used to ensure that the compiled program can run.

12. What is DNC communication?

The method of program transmission can be divided into CNC and DNC. CNC means that the program is transmitted to the memory of the machine tool through media media (such as floppy disk, tape reader, communication line, etc.) processing. Since the capacity of the memory is limited by the size, the DNC method can be used for processing when the program is large. Since the machine tool directly reads the program from the control computer during DNC processing (that is, it is done while feeding), it is not affected by the capacity of the memory. Limited by size.

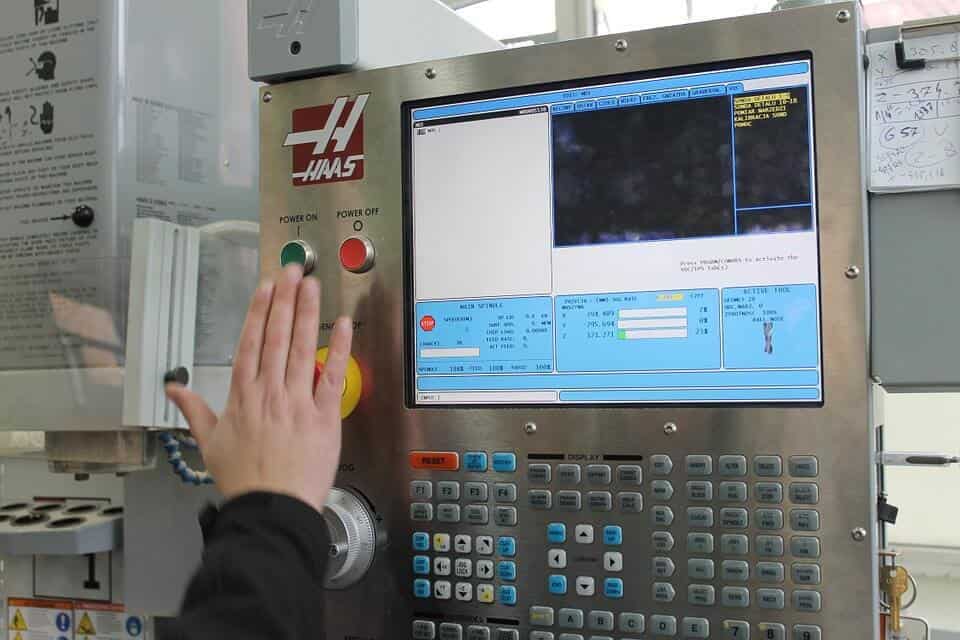

DNC machining

a. The cutting amount has three major elements: cutting depth, spindle speed and feed speed. The general principle of cutting amount selection is: less cutting, fast feed (that is, small cutting depth, fast feed speed)
b. According to the classification of materials, the knives are generally divided into ordinary hard white steel knives (the material is high-speed steel), coated knives (such as titanium plating, etc.), alloy knives (such as tungsten steel, boron nitride knives, etc.).
