CNC Milling Service

Martin.mu — Sun, 09 Jun 2024 17:17:24 +0000

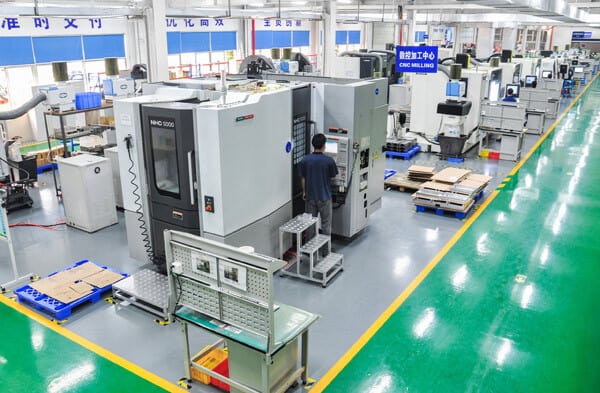

CNC milling services at DDPrototype use imported multi-axis machine tools. High-speed CNC milling is a versatile process for creating prismatic shapes and complex geometries in a variety of brasses, mild steel and stainless steels, aluminum, titanium and rigid plastic. Advanced Gühring endmills and cutters, professional technical knowledge provide you assurance that your parts precision can achieve 0.005mm, surface roughness can follow ISO 2632/1-1975 standard unless otherwise specified.

What is CNC milling?

CNC milling is a cutting process that uses a milling cutter to remove material from the surface of a work piece. The milling cutter is a rotary cutting tool, often with multiple cutting points.
CNC machining starts with a computer, on which designers prepare a part using CAD (Computer-aided Design) software. This digital part is then converted into a format that can be recognized by a CNC machine. CAM program will control CNC machining center change cutting tools according to difference process until the part is finished. CNC machines are often defined by their number of axes. More axes mean they can move their tool and/or workpiece in a greater number of ways, giving greater cutting flexibility and the ability to make more complex parts in a shorter time.

Advantage Of Our CNC Milling Services

Over 20+ years CNC machining experience, 100+ sets Multi-Axis CNC Machining center with powerful production capacity, 40+ senior engineers with rich experience in CNC Machining. Providing One-on-One project support, Instant quotes within 24 hours, Lead time as fast as 2-7 days for the rapid prototyping, 50%-70% cost savings compare to Europe & US market.

CNC Milling Video | DDPROTOTYPE

DDPrototype’s CNC machining services offer you precision fabrication of plastic and metal parts in any volume. We specialize in multi-axis milling, turning, EDM, surface grinding, laser engraving and much more. If you need a precision machining company for complex geometries parts, DDPrototype is the best place to go.

Enjoy Sloving any CNC precision machining projects.

We have 100+ sets advanced Multi-Axis CNC machining center, as well as EDM, Wire cutting, Laser cutting, and our CNC machining department equipped with the latest CAD/CAM software. And we use CAD/CAM software, eg. UG Mastercam powermill.

40+ senior engineers in CNC machining, lead DDPrototype can work complex geometries precision parts, tolerance can control within ±0.005mm. Advanced CNC machining center, powerful production capacity enable DDPrototype can provide fast turnaround to customer in project development phase.

What materials can be used in CNC milling?

As all CNC machine tools, CNC milling can process almost any kind of material. Aluminum, brass, steel, copper and titanium can be used. Similarly glass fiber, plastic and wood can be machined by CNC also.
Materials can be applied to CNC milling processes include:
Metals and alloys: steel, stainless steel, copper, aluminium, brass, etc.
Plastics: ABS,PP, PC, PTFE, PEEK, Nylon and GF filled and so on.

Auxiliary Fixture for CNC Machining

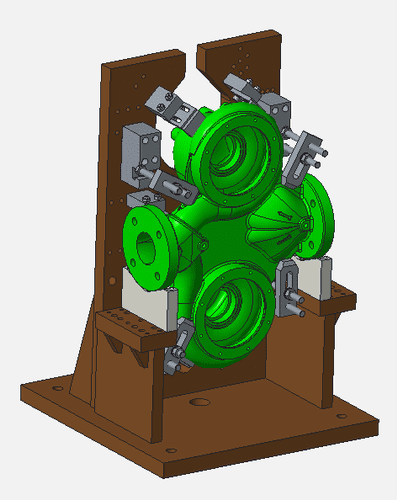

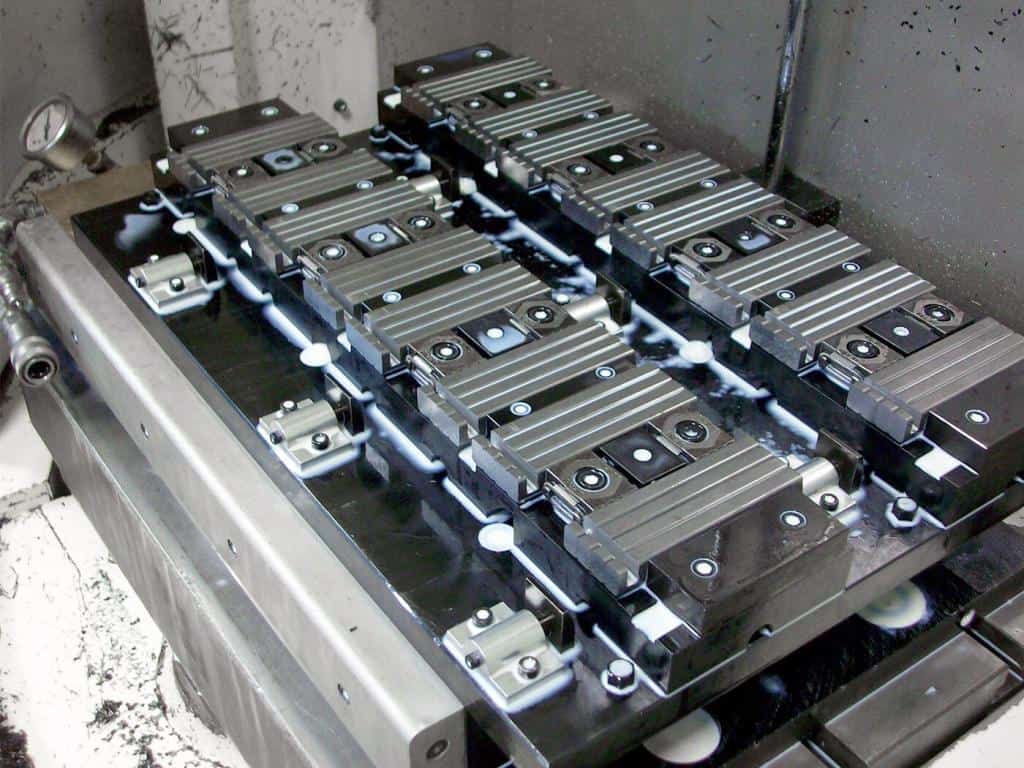

Auxiliary fixtures is indispensable for the parts under CNC machining, to design an auxiliary fixture is generally according to the specific requirement process. During phase of formulating the machining process, we would take the possibility of the fixture implementation into consideration, then to design the auxiliary fixture for CNC machining. Design an auxiliary fixture for CNC machining, will guarantee the quality of the workpiece, and improve production efficiency, saving cost, guarantee the safety for operation and so on.

DDPROTOTYPE specialized in manufacture highly precision parts, provide service for rapid prototyping, low-volume & mass production. With rich CNC machining experience, competitive price, fast turnaround enable us provide customer with “One-stop-service” CNC machining. Contact us today to start your CNC machining projects.

Latest Blog Post

How Prototype Machining

Watch Our Latest Video

The post CNC Milling Service appeared first on DDPROTOTYPE.

CNC Turning Service

Martin.mu — Sun, 09 Jun 2024 16:48:44 +0000

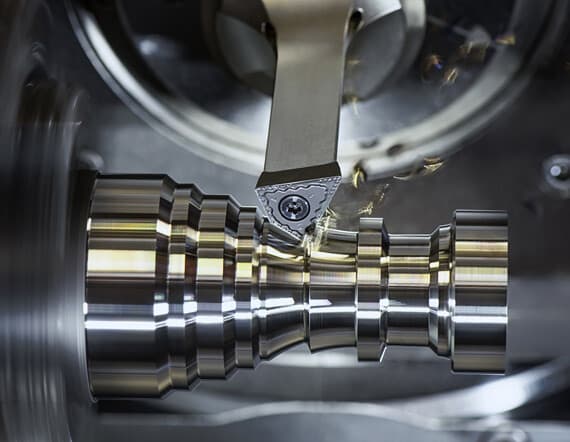

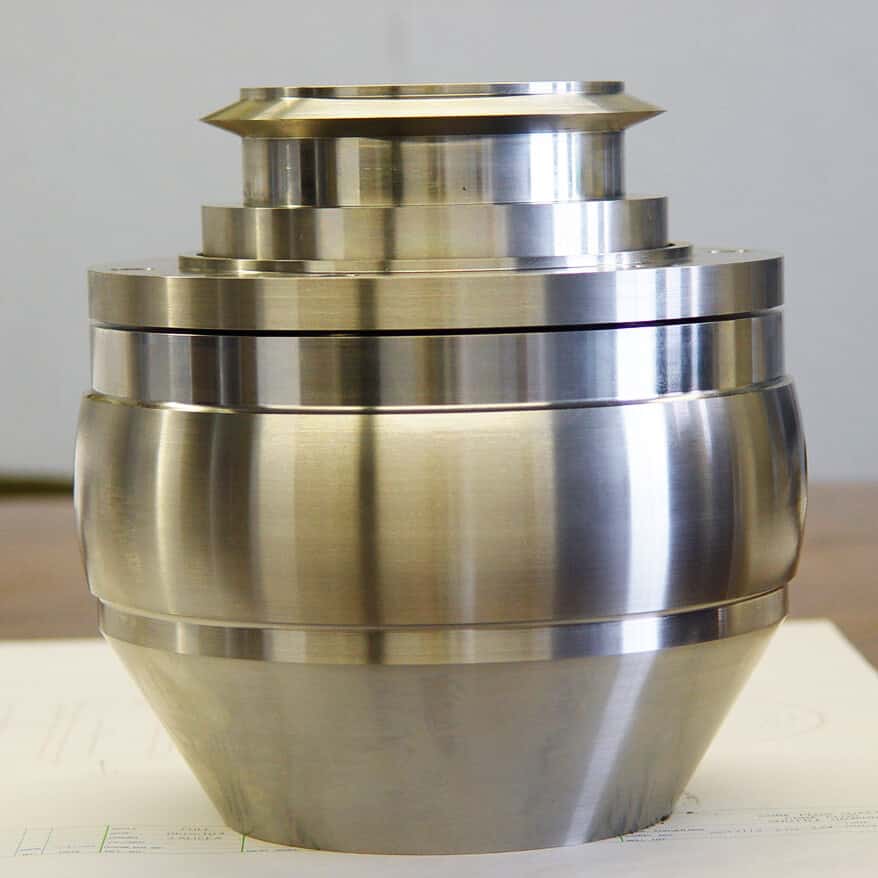

CNC Turning manufacturing includes internal and external cylindrical surface machining, end surface turning machining, drilling machining, threading machining, complex shape and profile machining, and complex contour rotary surface, etc. Drills, reamers, taps, threading dies, knurling and CD texture tools can also be used on the CNC lathe for corresponding processing. It is the most widely used type of machine tool in mechanical manufacturing and repair factories.

DDPROTOTYPE is honored to provide high precision CNC turning services in our world-class factory. Our precision CNC turning service has unparalleled quality and accuracy, and is well-known and respected throughout the industry. We can ensure that every part produced can meet your requirements and even exceed your expectations. We have been working to improve our process by adding new advanced equipment and technology. With 20 years of CNC turning experience, our reputation for quality is constantly improving.

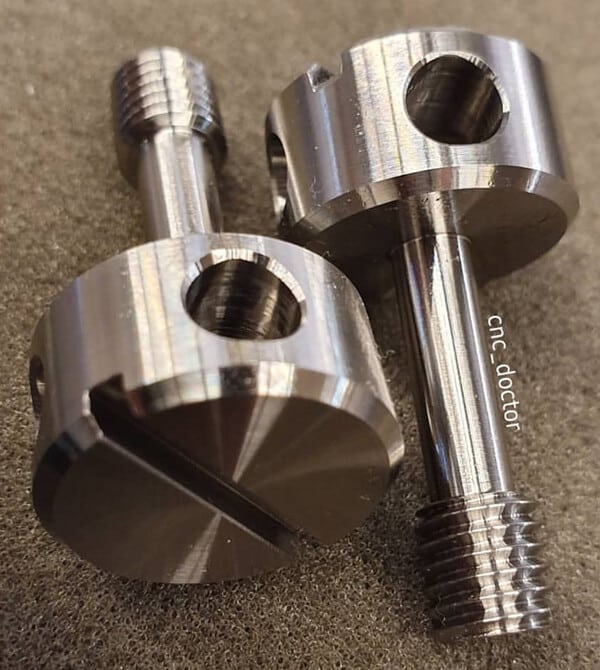

What is CNC turning?

CNC turning is mainly for some round or spherical parts, internal and external conical holes, and special internal and external threads, also available for drilling and knurling. The precision can be 0.005mm, follow to the surface roughness ISO 2632/1-1975 standards. Both engineering plastic and metal can be optional. Such as stainless steel, low carbon steel, copper, aluminum alloy, magnesium alloy, PEEK POM PA ABS PP PC PMMA PTFE.

Advantages of CNC Turning

1.Fast finish for round, spherical, shaft, conical parts.
2.Simple programming, just enter the G code parameters.
3.MOQ only one piece for customized part. Also available for mass production.
4.Cost saving and high efficiency.
5.High precision to 0.005mm. Surface roughness standards ISO 2632/1-1975.
6.Non-standard thread machining. eg. M3*70 pipe threading, conical threading, lens threading, special internal and external threading.
7.Various material: Stainless steel, low-carbon steel, copper, aluminum alloy, magnesium alloy, PEEK, POM, PA, ABS, PP, PC, PMMA, PTEF and so on.
8.Compared with CNC milling, it is more round and accuracy in round and spherical shape.

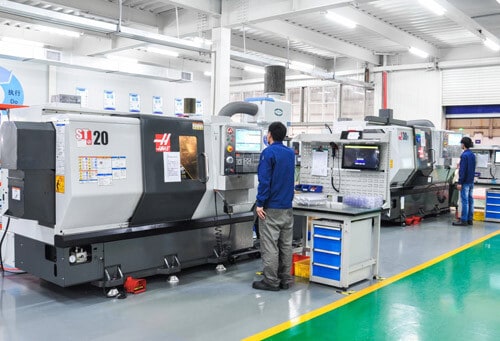

Advance Equipments of DDPROTOTYPE

DDPROTOTYPE has passed ISO 9001:2015 Certification. We have more than 15 CNC lathes. Our CNC lathes are manufactured by industry experts, including Jingdiao,HAAS.These CNC lathes are hybrid machines, combining the best characteristics of lathes and milling machines, providing high quality processing services, so as to achieve higher efficiency and more complex geometry for your project.

CNC Turning Video | DDPROTOTYPE

Competitive Pricing

CNC turning combines with other CNC machining, low-volume manufacturing, prototype design and finishing services. Combining with China’s high efficiency and abundant materials, you can get 40%~70% lower cost quality parts than your competitors, while maintaining the quality you expect and deserve.

Technological process

We accept the following minimum and maximum part sizes:
Minimum diameter: 1.6 mm (1/16″) length: 3.2 mm (0.126″)
Maximum diameter: 152 mm (6″) length: 304 mm (12″).

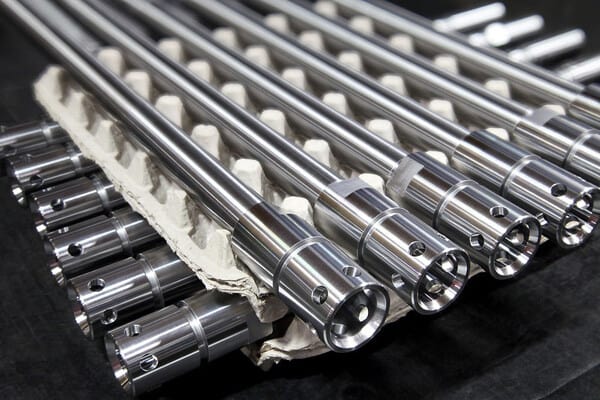

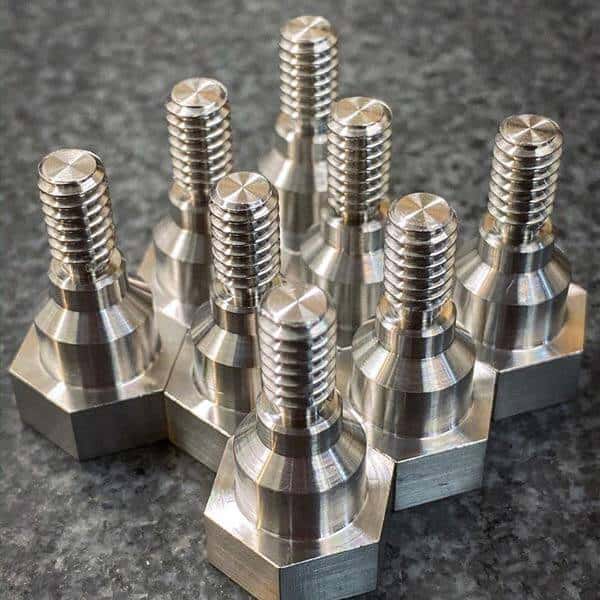

Precision CNC Turning

We use a variety of precision CNC lathes to provide excellent versatility, fast and efficient production. DDPROTOTYPE precision CNC turning equipment is designed to provide high accuracy, strict tolerance and excellent consistency, suitable for complex prototyping. We have CNC lathes, using field tools in the same settings to perform secondary milling, to produce short processing time of the complete processing parts. Our 6-axis screw machine uses multiple real-time tools to complete precision CNC turning engineering with the highest efficiency.

Check Out Our Advanced Equipments >>>

CNC Turning Classification

Hard turning – A process designed to replace grinding processes used for hardening materials.
Grooving and end grooving – The process of cutting slots of predetermined depth to the side or face of the workpiece.
Drilling – Mainly used to remove materials from the workpiece from the inside. More advanced CNC lathes can stop the workpiece rotation, drilling or milling away from the center or cross center to the workpiece.
Boring – The process of expanding pre-drilling with a single point tool.
Reaming – The process of expanding pre-drilling with a multi-groove tool designed to cut tool diameters.

Our Capability

DDPROTOTYPE precision CNC machine tools enable us to provide a wide range of CNC turning services. We have precision CNC lathes, which are very suitable for R&D, prototype and short-term operation. We also have equipment specially designed for manufacturing highly complex parts. Our precision CNC lathes provide excellent repeatability for mass production. Whatever the scope of work, DDPROTOTYPE can do all this.
Our precision CNC turning equipment is programmed with G code software to ensure excellent quality and high accuracy, as well as excellent consistency of repetitive parts. This makes our precise CNC turning service very suitable for many industries that need to maintain precise tolerances. From medical and electronic, aerospace and defense industrial applications, our precision CNC turning services can meet the most stringent production requirements.

What advantages of working with us?

At DDPROTOTYPE, we have complete CNC machining services, waiting for you to start manufacturing CNC machining parts. Here are some reasons why you and we have become strategic partners:

1 We are located near the main shipping ports of Shenzhen and Hong Kong, so your parts can be delivered quickly and competitively.

2 We have the world’s advanced CNC lathes and tools imported from the United States and Japan.

3 Our factory has passed the certification of ISO 9001:2015 and processed high quality parts accordance with standard process.

4 You will have a team of skilled technicians, project managers and prototype manufacturers.Part quality can be guaranteed

5 We are able to reduce costs while providing unparalleled accuracy and quality. Compared with Europe and the United States, China has abundant materials and low labor costs, and the cost of prototyping can be as low as 50%.

6 The quality inspection and testing of the raw materials in stock ensures the integrity of our supply chain, so you can get the materials you specify. Our aim is to run fast and produce high quality parts on time.

Difference between turning and milling

1.Different machining method

Generally, Turning machining is special for round, shafts, sleeves, disks, cushions parts. Mainly is horizontal machining. Also large lathe is vertical and other machining forms. There are usually a cutter holder to fix the cutter. And machining form is generally the cutter feeds automatically. Mainly movement is the part rotating.

CNC Turning available for internal holes, threads, and knurling machining (low-speed machining). Also it can be solved with complex rotary ball-shape or round shape feature machining.

Milling machining, machining method is opposite from CNC turning. The main movement is the cutter rotation, while the part is feeds movement. Milling is to fix the blank(rough material) with a high-speed rotating milling cutter to move on the blank(rough material) to cut out the required shapes and features. Traditional milling is common used to simple shapes/features, such as profile and grooves. CNC milling machine can process complex shapes and features.

2.Different (structure) parts.

Turning machining is processing the rotating parts (round shape). Clamped the parts on the main shaft by a three-jaw chuck and rotating with high speed. Then, use a turning cutter to move around the busbar to cut out the part profiles. CNC Turning available for internal holes, threading, and knurling machining (low-speed machining). Also it can be solved with complex rotary ball-shape or round shape feature machining.

Milling machining is fixed the blank(rough material), and with a high-speed rotating milling cutter to move on the blank(rough material) to cut out the required shapes and features. Traditional milling is common used to simple shapes/features, such as profile and grooves. CNC milling machine can process complex shapes and features.
Simply speaking, Turning is moving parts with fixed cutter, while Milling is moving cutter with fixed parts.

Latest Blog Post

How Prototype Machining

Watch Our Latest Video

The post CNC Turning Service appeared first on DDPROTOTYPE.

Auxiliary Processing for Manufacturing

Martin.mu — Sun, 09 Jun 2024 09:36:44 +0000

Auxiliary processing for manufacturing plays an important role in the actual machining process.Mechanical processes can be divided into manual machining and CNC machining two mainly categories. Even with the development of technology, most of manual processing still cannot be replaced by CNC machining. Sometimes in order to meet the drawing requirement of the part, we will take manual process and other auxiliary processing for manufacturing, such as EDM, Wire EMD, Manual milling & turning, Manual grinding, Deep hole drilling and so on. Click here for learn more about auxiliary processing knowledge…

1. EDM and Wire EDM Machining

EDM is an important auxiliary manufacturing process of CNC machining, often used in mold manufacturing, but also for some special structure of prototype machining. Using conductive graphite or copper electrodes immersed in the dielectric, when applied with a high voltage current, sparks are generated on the copper tool wall, etching away excess material and fulfilling the customer’s critical radius angle requirements.
As a leading prototype manufacturer in China, DDPROTOTYPE could provide customers with precision EDM and wire EDM Machining services.
EDM is mainly used for machining parts with complex shapes, deep holes, deep cavities, deep grooves, narrow and deep slot , machining various metal materials, such as aluminium plain steel and so on. Wire EDM is also very suitable for the production of geometrically complex high-precision gears.

EDM machining accuracy:

DDPROTOTYPE has 40+ experienced engineer ,we are able to provide high precision parts following ISO2768-F grade tolerance standard unless otherwise specified, Our auxiliary machining method can meet the different precision and structure requirements of customers.

2. Manual Milling Machining

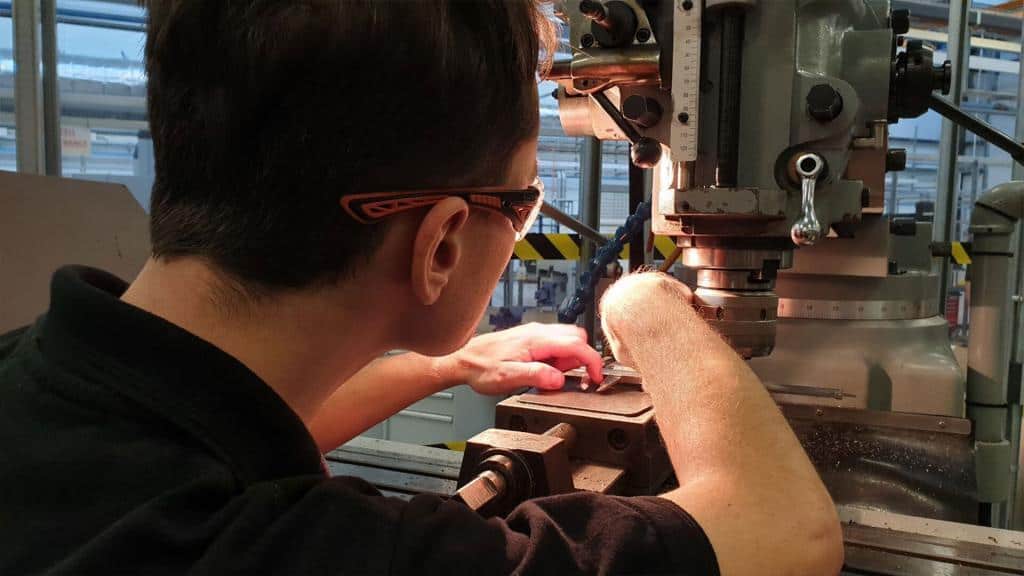

Manual milling is a widely used machine tools, manual milling machine can process plane (horizontal plane, vertical plane), Slot (key slot, T-Slots, dovetail slot, etc.), can be applied for inner hole processing also. When the manual milling machine is working, the workpiece will be fixed on worktable or clamping fixture of index head, then cutters start rotating with worktable moving until the workpiece completed the production with required machining surface. Manual milling processing without request computer programming, only according to 2D drawings to find the benchmark processing of part. Usually used for auxiliary processing of die parts manufacturing, as well as customized parts.

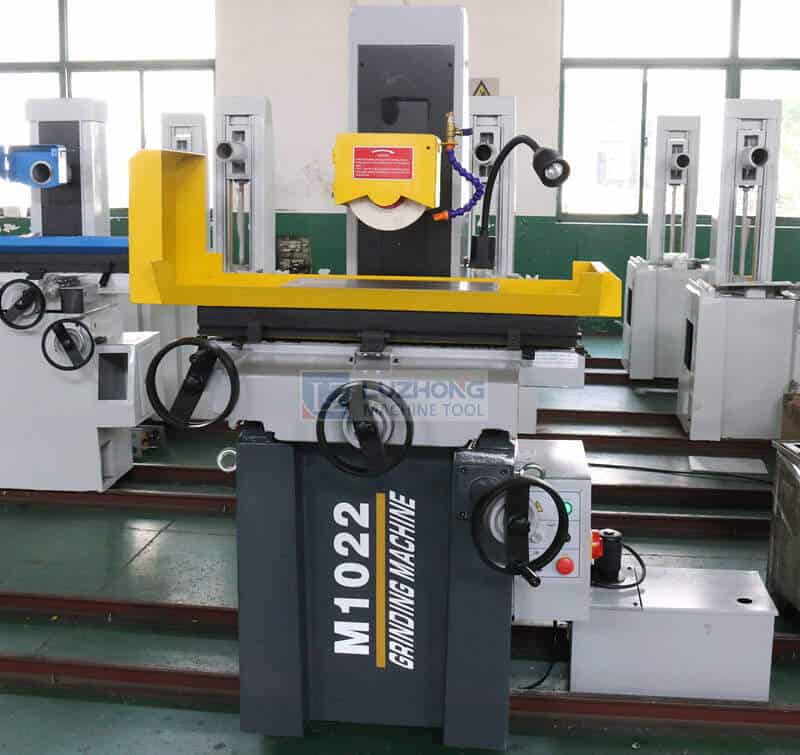

3. Manual Grinding Machining

The manual grinding machine can process with higher hardness materials, such as hardened steel, hard alloy, etc. It can work with high precision and very smooth surface roughness (up to Ra 0.04).

1.Cylindrical grinder machine: It is a common and basic series, mainly used for grinding the external surface of cylindrical and conical objects.
2.Internal grinder machine: It is a common and basic series also, mainly used for grinding the internal surface of cylindrical and conical objects. Also can be applied for internal/external grinding of ball shape objects.
3.Surface grinding machine: Mainly used for grinding flat surface of workpiece.
4.Tool grinding machine: Mainly used for tools’ grinding.
5.Special grinding machine: Mainly use for grinding some special parts, different parts request different grinding machine to process, such as spline grinder ,Crank grinder, cam grinder, gear grinder, thread grinder , curve grinder and so on.

4.Drilling Machining

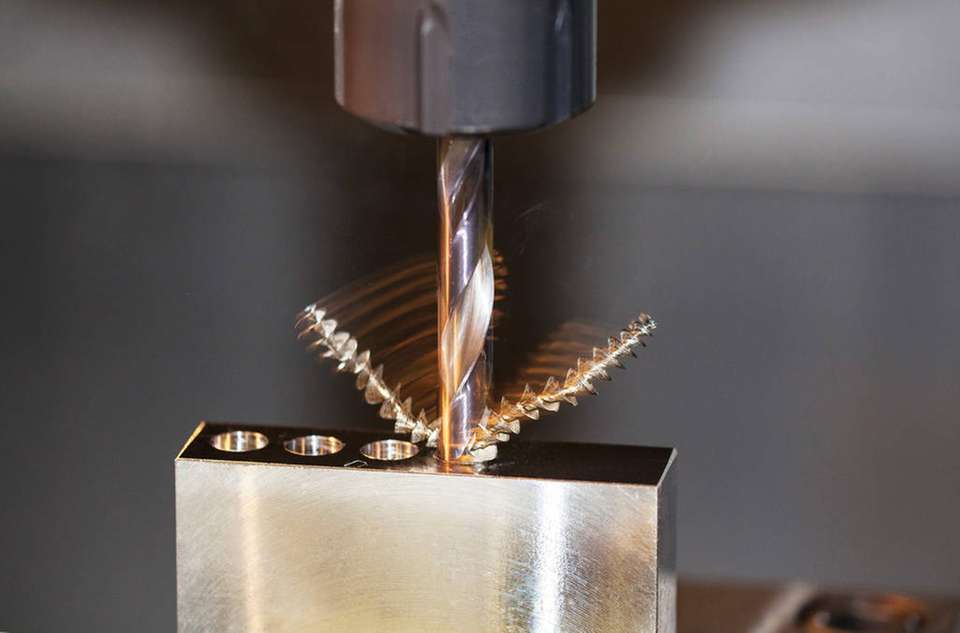

Drilling machine mainly use drills to process holes on the workpiece. Drills start high-speed rotating and bullheaded down to the surface of workpiece till the holes achieved. The structure of drilling machine quite simple, and machining accuracy not tight, can use for drill through-hole, blind hole. Change other special cutters can achieve expansion, dimpling, reaming, threading and so on. Drilling machine is indispensable equipment for machinery manufacturing and various repair shopes.

5.Deep hole Drilling Machining

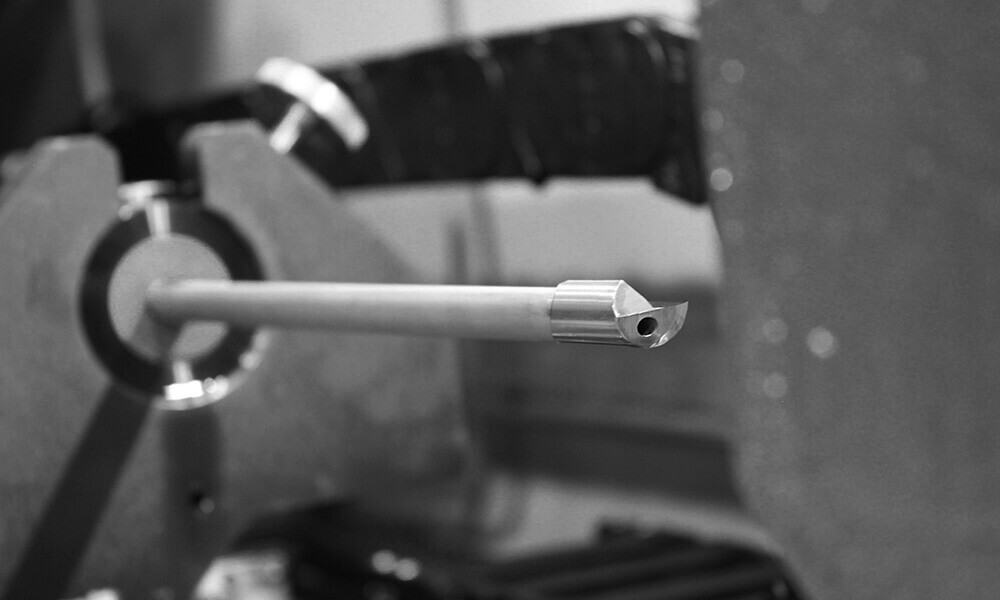

Deep hole drilling machine mainly use for drill the hole which the depth bigger than the diameter (For example the hole with 10mm diameter and 300mm depth). For discharge the scraps smoothly and avoiding the deep drilling machine too huge generally adopt horizontal layout, Equipped with coolant apparatus (Cooling liquid transported from inside of drills to the cutting location), and equipped with periodic withdraw drills device for well discharge the scraps.

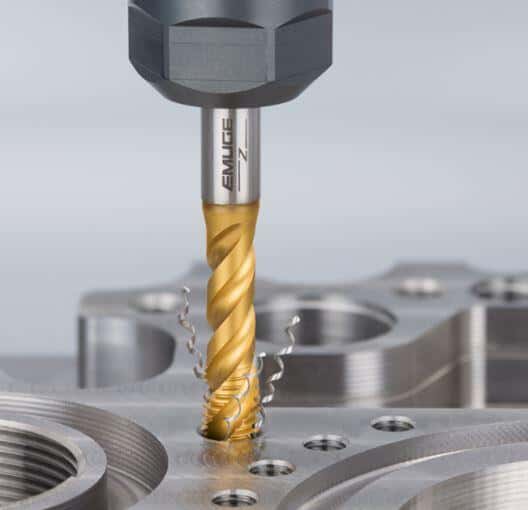

6.Tapping Machining

Tapping machine divided into drilling & tapping machine, reaming tapping machine and so on. Automatic tapping machine with highest degree of automation, set up parameters before processing, with efficient production and cost saving greatly. High quality nut tapping machine processing various nuts with high finish tread, high qualified rate of finished goods. Mainly used for processing thread with large quantity.

The post Auxiliary Processing for Manufacturing appeared first on DDPROTOTYPE.

5 Axis CNC Machining

Martin.mu — Sun, 09 Jun 2024 08:58:41 +0000

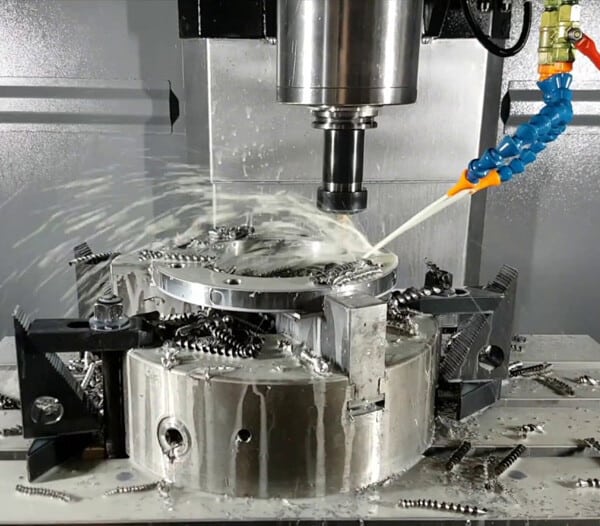

DDPROTOTYPE adopts ultra-precision 5-axis cnc machining to reduce cost and delivery cycle, with the highest accuracy of 0.005mm. We focus on synchronous 5-axis CNC machining contour and machining positioning. It requires not only precise machines to perform this level of processing. Our 5-axis cnc milling engineer is a professional mechanic. They design, program, fixture build, set up and CMM check components themselves, and run operations from beginning to end. 5-axis CNC machining services greatly increase the possibility of creating parts of various shapes and sizes. We are an experienced rapid prototyping company that can provide customized solutions to help you cope with the most difficult manufacturing challenges.

5-axis machining center is increasing 2 of A/B/C rotating axes on the basis of 3-axis, which is characterized by the increase of the two rotating axes and linear axis linkage and structure. The 5-axis linkage makes the machining efficiency faster. Inclinable C-axis structure, larger bearing, better rigidity.

For some complex multi-faceted machining products, it is difficult to achieve higher accuracy in 3-axis machining, and need much manual intervention, while 5-axis processing can achieve rapid positioning processing, mainly to increase the processing accuracy of products from the following angles:

1) Introducing 5-axis fixture;
2) Reduce clamping process;
3) There is no manual multiple clamping, The clamping error is reduced;
4) Only need to find a coordinate system, reduce manual errors;
5) Reduce the length-diameter ratio of the tool and reduce the risk of bouncing knife.

5-axes can improve the processing efficiency and surface processing quality of the workpiece from the following factors:

1) Use a tool with relatively short length and diameter to improve the processing stability;
2) Reduce the EDM process, the whole surface is more even;
3) Use the side edge of the ball knife to process and improve the surface quality of the workpiece.

5-axis CNC machining has unique infinite possibilities in dealing with the size and shape of parts effectively. Like 3-axis machine tools, cutting tools in 5-axis CNC machining centers move along X, Y and Z axes, but also rotate on A and B axes – allowing cutting tools to approach parts in any direction. When using all five axes, experienced mechanics can achieve extremely complex geometry and high accuracy. DDPROTOTYPE is skilled, experienced CNC Machinists and programmers can process complex shapes, undercuts and angles – all of which are started in one setting.
The ability to machine parts in a single setting not only increases the accuracy of the process, but also reduces the machining costs, management costs and labor time, so that the cost of each part is the lowest. Five-axis CNC machining center eliminates some shortcomings of traditional CNC machining technology, including various settings, parts transfer and inspection, prototype machining and errors related to personnel participation/interference.

5-Axis CNC Machining Video | DDPROTOTYPE

Application

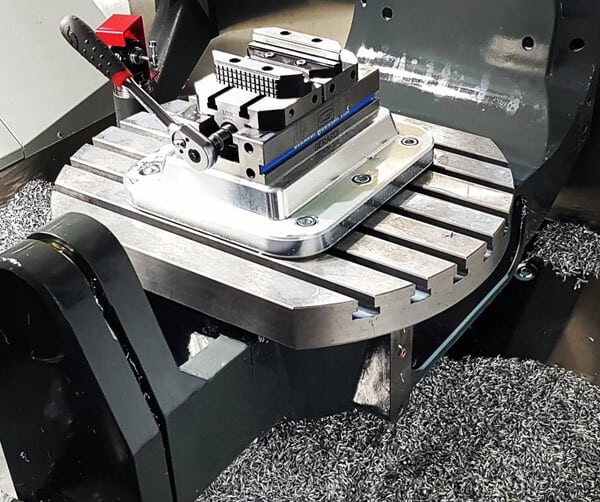

Nowadays, up to 60% of the prototype machining in CNC workshop need five-sided machining. Therefore, 5-axis CNC milling and processing services are required for various applications in various industries. The main consumers of 5-axis CNC machining services are key components of products in aerospace, robotics, food processing, pharmaceutical, medical and energy production industries.
DDPROTOTYPE continues to exceed industry quality standards and the capabilities of ordinary CNC machine tools. We are willing to accept the work of complex prototypes or CNC production prototypes.

Playing a Role in Manufacturing of Medical Devices

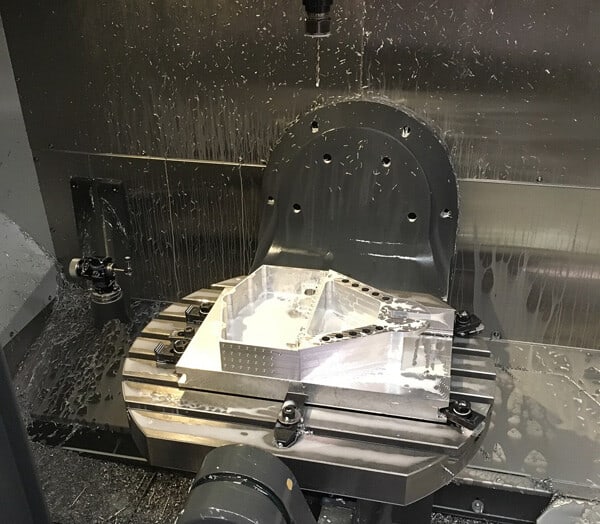

Although EDM is a more popular choice in medical processing, 5-axis CNC milling services still play a key role in some medical, dental and ophthalmic applications. If you are manufacturing medical equipment, surgical equipment or other related equipment, DDPROTOTYPE can meet your 5-axis machining requirements; provide the highest accuracy results. Our engineers are committed to achieving the exact specifications you propose and to ensuring that the deliverables you promised are received on time within the budget. With decades of experience working with manufacturers, designers and engineers of medical products, you can rely on our machine shop to complete the work as expected.

Check Out Our Advanced Equipments >>>

Advantages

1 Although 3-axis CNC machining has its advantages, it does bring some manufacturing constraints. The main difference is that the rotating elements of A and B axes are introduced in 5-axis CNC machining. In addition to faster generation of complex shapes, the production process of 5-axis parts can also achieve higher quality surface finish.

2 Higher accuracy: 5-axis CNC machining and milling provide precision that 3-axis CNC machining cannot replicate, which is critical if your product must meet stringent quality and performance specifications. Five-axis machining also eliminates the need to move workpieces between multiple workstations, thereby reducing the risk of errors.

3 Shorter delivery cycle: The enhanced function of the 5-axis machine can shorten production time, thus shortening the delivery cycle of production projects. This allows you to provide better service to your customer base.

4 Using shorter cutting tools: It is feasible to use shorter cutting tools to produce high quality parts, which can reduce the vibration that often occurs when processing deep cavities. This usually results in a smoother surface finish.

Latest Blog Post

How Prototype Machining

Watch Our Latest Video

The post 5 Axis CNC Machining appeared first on DDPROTOTYPE.

CNC Machining Service

Martin.mu — Fri, 07 Jun 2024 23:10:05 +0000

DDPROTOTYPE provide a variety of precision CNC machining services including CNC milling, CNC turning, EDM and wire EDM, and surface grinding. With 50+ sets Multi-axis CNC precision machining centers, 40+ senior engineering with rich professional experience to control the tolerance within 0.005mm for your precision parts. If you need a reliable rapid prototyping manufacturing partner to support you, DDPROTOTYPE will be the best choice for you. Keep learning more about us, or contact us now for Get an instant quote.

CNC Milling Service

CNC Turning Service

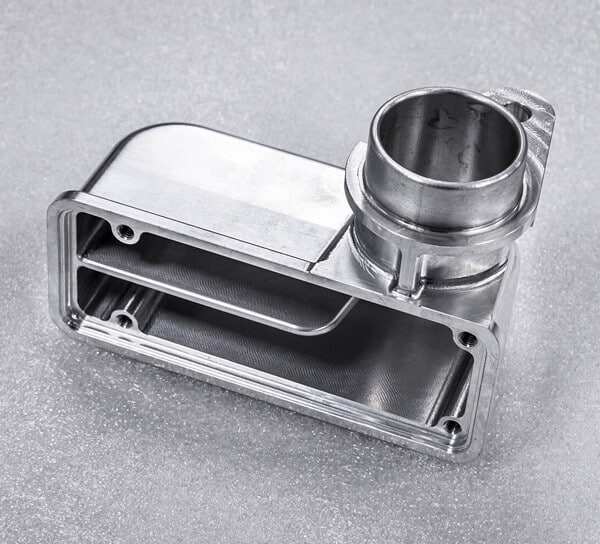

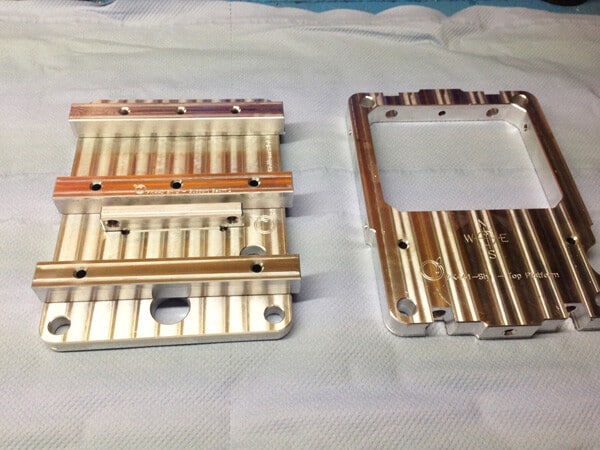

CNC Milling service can be applied to manufacture highly precision and sophisticated parts, such as the parts with 3D curved surface and complex geometries. CNC milling is universal , accurate and repeatable, can machining many different type of structure precision parts, including holes, curves, grooves, angle shapes and channels. Only one time clamping required, and using different cutters to achieve the different shape, tolerance can be controlled within ±0.005mm.

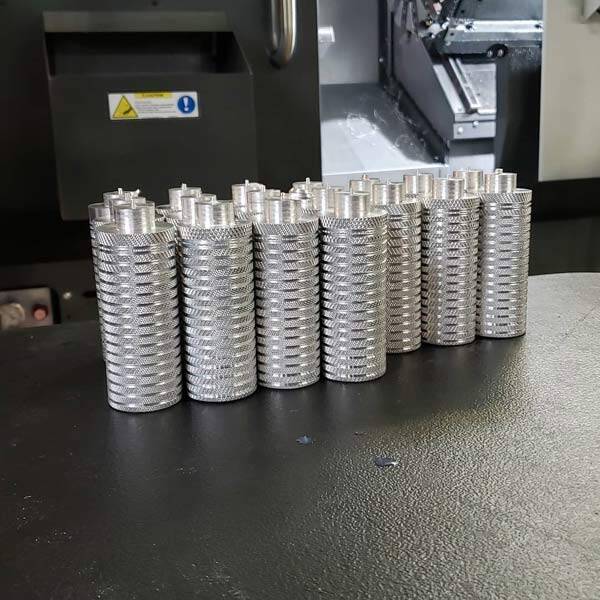

CNC turning using drill, expanding drill, reamer, tap, threading die and knurling and other corresponding tools, machining some round or ball-shaped and taper parts, as well as special external and internal threading. Precision can achieve 0.005mm, surface roughness can follow ISO 2632/1-1975 standard Unless otherwise specified. This processing method can manufacture various engineering plastics and different metals, such as steel, copper, aluminum, magnesium , PEEK POM PA ABS PP PC PMMA PTEF and so on.

CNC Machining Video | DDPROTOTYPE

CNC Machining Capability

At DDPROTOTYPE, Our experienced machinists can create quality parts that meet or exceed your expectations for precision, quality, and turnaround time. We can handle with stainless steel, aluminum, titanium, brass and other metals and engineering plastics into precise parts through milling or turning machining to meet different customers needs in different industry area, such as national defense, automatic, medical, electronics and robotics. surface roughness can follow ISO 2632/1-1975 standard Unless otherwise specified, High precision to 0.005mm. Special dimension please contact us for details.

CNC machining service at DDPROTOTYPE not only limit to rapid prototype manufacturing.Over 10+ senior CNC programmers with rich experience, according to the drawing requirement to choose difference CNC machining centers and cutter for manufacturing, can cover production for low-volume and full-scale orders, quantity can start from 1pc to 100Kpcs. During the machining process, for the special dimensions we will arrange on-site inspection. When parts finished the production, we will arrange full dimensions inspection and provide inspection report before delivery. DDPROTOTYPE provide the design validation and assemble service also. Contact us now for start CNC machining project.

Upload the CAD file to info@ddprototype to receive quotation within 12 hours.

Advantage of Our CNC Machining Service

1. Experienced machinist team has solved many complicated projects. For complex and high precision projects, we have a series of solutions about deep drilling, thin wall thickness, irregular structure, and so on.

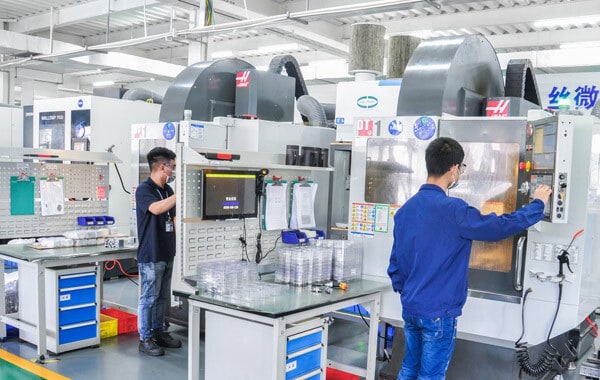

2. There are 100+ in-house manufacturing and testing machines, including Jingdiao 3 and 5 axis CNC machines, CMM. Travel max to 2000/800/350mm. High-precision tolerance to 0.005mm.depending on customer requirements.
3. Located in Shenzhen China with completed supply-chain, various materials optional meet your special requirements. 50+ operators with 7*24 hours working time, short your developing schedule and cost saving. 3~7 days worldwide delivery, 40% to 70% off than Europe/America.
4.With 20+ years of CNC machining experience, can streamline machining path to min, machining parts in the fastest time and deliver on time , which can greatly save processing time,and reducing machining costs.

CNC Machining Auxiliary Process

To achieve some specical structural requirements, such as undercut structure, deep groove and vertical structure, we will use manual milling machine, EDM, wire cutting, grinding machine, deep hole drilling machine to assist machining to meet customers’ different requirement in dimensions and structure.

Surface grinding is a process for making parts with extremely flat and smooth surfaces. When the workpiece is fixed in the fixture, It moves back and forth across the surface with a precision grinding wheel, Thus the surface roughness can be greatly improved.

Standard tolerance for CNC machining

About tolerance, unless otherwise specified, For CNC milling and CNC turning parts, we follow DIN-2768-1-fine tolerance standard; For vacuum casting and sheet metal parts, we follow DIN-2768-1-medium tolerance standard; For assembly parts to be welded, we follow DIN-2768-1- coarse tolerance;
Before starting machining, our programming engineer, production engineer and quality engineer will discuss the machining plan of the product, whether the tolerance can be achieved, and the testing fixtures and tools needed. For parts that need to be manufactured on multiple surfaces and require high precision, we will test them while machining and prepare testing fixtures according to requirements to to ensure accuracy.

Above tolerances won’t apply to sheet metal parts, welded assembly part , and overall dimensions over 400mm. For any special tolerance requirements, please feel free to contact our team.

CNC Machining Finishing Service

For appearance prototype, in order to show the final intuitive effect of the product, many clients need to do a variety of special surface finishing in accordance with the mass production requirements; Our team are able to deal with aluminum anodizing (various colors available according to Pantone Number provided), steel passivation, metal/plastic painting, plastic vacuum plating, electrophoretic coating, brushing, electropolishing, mirror polishing, silk screen printing, etc., to meet a variety of requirements.

To learn More About Anodized Aluminum, Please Click Here

CNC FINISHING AND POST-PROCESSING OPTIONS
As machined (standard)	Bead blasting	Polishing	Heat treating
Anodizing	Brushing	Screen printing	Passivating
Powder coating	Painting	Engraving	Plating……

Surface Roughness

CNC machining is a highly accurate and precise manufacturing process that can create parts with tolerances as tight as 0.005 mm. However, CNC machining leaves cutting marks that create a level of roughness on the finished prototype surface.In manufacturing, there are specific Ra values that are considered industry standards, as specified in ISO 2632-1. These are the values that may be specified during CNC machining. They range from 12.5 um to 0.025 um and apply to all kinds of manufacturing and post-processing operations.

full dimensional inspection reports

Surface finish stems from the understanding of the surface hardening rate of a given material. No worry. DDPROTOTYPE is your best choice for quality CNC machining and finishing services at the best prices. We offer full dimensional inspection reports, so you can be sure of desired results. We also carry out different finishing processes ranging from anodizing, electroplating, bead blasting to polishing, brushing, and more.

For the parts with assembly relations, we will conduct trial assembly before delivery, purpose for guranttee the parts fit well when customer received it.

At the same time for all parts with 2D drawings, we will arrange full dimensions inspection and send inspection report to customer, which is a most important internal working procedure at DDPROTOTYPE.

Design For CNC Maching

Although CNC machining is versatile, but there still have some processing limitation because of design. So when we design a part, we should take the design rules into consideration to guranttee the CNC machining process smoothly. The limitation of CNC design are mainly due to the mechanics of the process, the geometry of parts, and the limitations of cutting tools.

To take full advantage of CNC machining, designers need to follow manufacturing design rules to make the product has feasibility of machining. If you need support, we can provide some suggestions in order to avoid the machining failure due to design defects. We have done some basic and common design defects for reference.

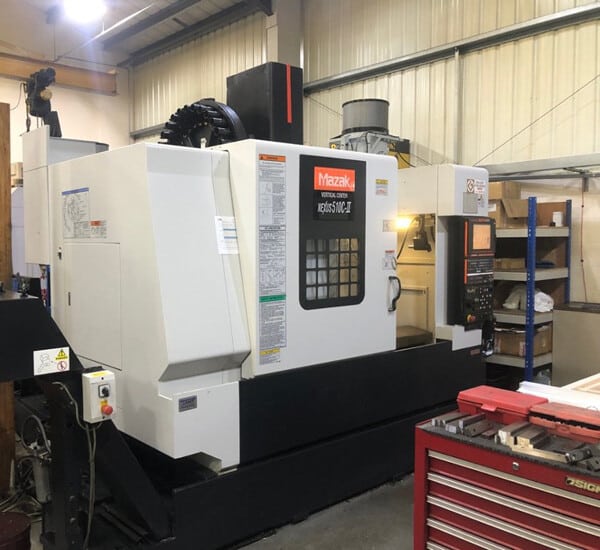

Advance 3 axis CNC Machining Center

If your prototype is not very complex and your budget is limited, it is also a good choice to choose 3-axis CNC machining service. Also it is a cost-effective choice. In many cases, 3-axis CNC machining is a popular prototype machining method. DDPROTOTYPE purchased another 20 sets Jingdiao equipments, tolerance can achieve to 0.005 mm. Quota Our quality inspection equipment, DDPEOTOTYPE is fully capable of meeting your needs, even the quality will exceed your expectations.
3-axis machining is processed by linear feed axes X, Y and Z.
Machining features: The direction of the cutting tool remains constant throughout the cutting path.
After the machining parts are clamped once, the CNC system can control the machine tool to select and replace the tool automatically according to different working procedures.

Changing machine tool spindle speed, feed and tool relative workpiece movement track and other auxiliary functions automatically, continuously proceeding with milling, drilling, tapping and other processes on workpiece automatically.

Because the machining center can be centralized, accomplish a variety of processes automatically, avoid manual operation error, reduce the workpiece clamping, measuring and machine tool adjustment time a, which greatly improve the processing efficiency and processing accuracy, with higher economic benefits.

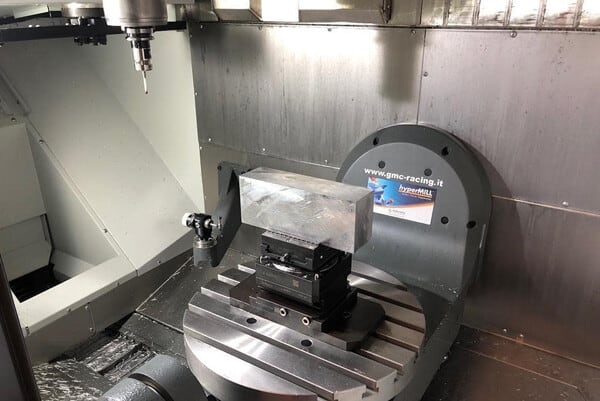

5 Axis CNC Machining Center

Advanced 5-axis vertical machining center, model JDGR-400T, can process and milling more complex parts with high precision. 5Axis CNC machining Service will take your manufacturing process to a higher level, even beyond the expectations of customers.Complex parts are perfect for GMU-400T. With its generous travels and 5-axis capabilities, you’ll easily reduce setups and part handling, while increasing feature-to-feature accuracy.

Our 5-axis CNC machining centers make turned and milled parts from a wide range of plastic, and metal alloy materials – such as aluminum, brass, nickel, and steel, both mild and stainless steel. We use industry-leading software like Autodesk PowerMill and CGTech Vericut, and we have over 8,000 + genuine Gühring cutters in stock.

5-axis CNC machining is an effective means to reduce setups and increase accuracy for multi-sided and complex parts. The JDGR 400T has an integrated dual-axis trunnion table with a 400 mm diameter platter that features standard T-slots and a precision pilot bore for fixturing versatility. The trunnion provides -120 and 90 degrees of tilt and 360 degrees of rotation to provide excellent tool clearance and large part capacity.

5 Axis CNC Machining Center- JDGR 400T

Tolerances for feature size:

Standard +/-.002mm
Minimum +/-.002 for metal and +/-.003 for plastic

Tolerances for hole diameter:

Standard +/-.002 mm
Minimum +/-.0004 mm for metal and +/-.001 mm for plastic

Tolerances for Flatness, Run Out, Cylindricity, Perpendicularity and other Geometry:

Standard+/-.005 mm
Minimum +/-.002 mm is possible per geometry dependent

X/Y/Z axis working stroke：450mm/680 mm/400mm

Maximum Speed：20000 rpm

Tool Magazine Capacity：36

Helping Our Customers

Richard, from the United States, found us through Google search and manufactured an engine cover. The prototype machining is very complex, there are many apertures, and the tolerance requirements are more stringent. Richard is an industrial designer who has worked with many prototyping companies. When DDPROTOTYPE sent the hood to Richard, Richard gave a high appraisal, indicating long-term strategic partnership with DDPROTOTYPE. Richard’s colleagues have now fully recognized us. Send your 3D drawings, get competitive quotations and feedback within 12 hours.

More Successful Case Study

Plastic and Metal Materials

We stock more than 60+ engineering-grade plastic and metal materials that are suitable for various part applications and industries. Materials range from plastics like ABS, polycarbonate, nylon, and PEEK to aluminum, stainless steel, magnesium, and copper.

VIEW More Material >>>>

Latest Blog Post

See How It Was Made

Watch Our Latest Video

The post CNC Machining Service appeared first on DDPROTOTYPE.

3-axis CNC machining

Martin.mu — Thu, 06 Jun 2024 15:48:58 +0000

3-axis CNC machining centres still have place in modern manufacturing. Whether a 3-axis cnc milling machine is the right solution for your business depends on a myriad of factors relating to the size of the production run, workpiece properties, accuracy and finish requirements, materials costs, stock holding capabilities, etc. At DDPROTOTYPE, we have the knowledge and expertise to analyse all these variables and determine if 3-axis milling is still the most profitable option for you.Even though 5 axis CNC machining has become the next big thing in milling solutions, 3 axis CNC machining is still looked at as an efficient and profitable solution.

Advance 3 axis CNC Machining Center

If your prototype is not very complex and your budget is limited, it is also a good choice to choose 3-axis CNC machining service, and it is a cost-effective choice. In many cases, 3-axis CNC machining is a popular prototype machining method. DDPROTOTYPE purchased another 20 sets FANUC equipment from Japan, model FANUC X-D14MIB, tolerance can be accurate to 0.01 mm. Quota Our quality inspection equipment, DDPEOTOTYPE is fully capable of meeting your needs, and even the quality of prototype machining will exceed your expectations.

What is 3axis CNC machining？

Machining where a workpiece is machined by a rotating tool with computer controlled movement in 3 axes.The workpiece is clamped onto a flat table and machined by a rotating tool provided with cutting inserts. Positioning of tools and/or work table is done by a CNC program which controls the drive in the X, Y and Z directions. In this way, the tool can be moved along the bottom or on the workpiece surface. The inserts removes material by chip breaking.
The clamping in combination with the three axes provides a limited possibility of processing several sides without reclamping.
Through a variety of milling tools many forms and complex shapes can be created. FANUC X-D14MIB equipped with a tool magazine with automatic tool change.

We are proud of it.

With more than 15 years of precise CNC machining experience, our mechanics can meet various challenges. Some projects can run well with 20 advanced devices, but other projects may run better with more creative processes that we like to solve. We are proud to continue to improve our long-term work. I like to walk around our stores and see unusual processes that have developed in terms of productivity and quality. From automobiles to zoos, we serve a wide range of industries (we have made some fasteners for spacecraft). We are a rising company, but our products are everywhere.

3-Axis CNC Machining Video | DDPROTOTYPE

Satisfy all conventional CNC machining requirements

DDPROTOTYPE has skilled mechanics and equipment to meet all your internal conventional processing needs. No matter how big or complex the project is, we will provide fast and accurate service every time. With the most advanced technology and general processing technology, DDPROTOTYPE can process parts according to your unique specifications. With the help of precision metal processing lathes including HAAS precision machine tools, we can easily produce innovative prototypes and high-quality machined parts.

Our ability

We provide customers in the medical, aerospace and other advanced manufacturing industries with sophisticated, precision machined parts and components. With a number of CNC milling and turning centers, highly efficient production facilities and dedicated staff, we can provide customers with PMMI expected quality and service. Common materials include Custom 455 and 465 stainless steel alloys, heterogeneous materials (such as tantalum or Hastelloy) and engineering plastics (including Celcon and Radel) that can be sterilized at high temperatures.

Precision Tolerance

From 20 CNC milling centers of FANUC in Japan, the contour of complex geometry can be effectively analyzed. CNC milling size capability is 40 inches long, 22 inches wide and 18 inches high. We have more than 20 milling and turning centers, which enables us to competently manufacture various types, sizes and volumes of parts. Typical machining tolerance is about (+0.01mm), and in precision applications, the tight machining tolerance is usually (+0.0005mm). Given the material, size and geometry of the part, specific tolerances can be discussed with the customer. Provide other services including anodic oxidation, polishing, heat treatment and sculpture, and complete complex assembly on site.

Latest Blog Post

How Prototype Machining

Watch Our Latest Video

The post 3-axis CNC machining appeared first on DDPROTOTYPE.

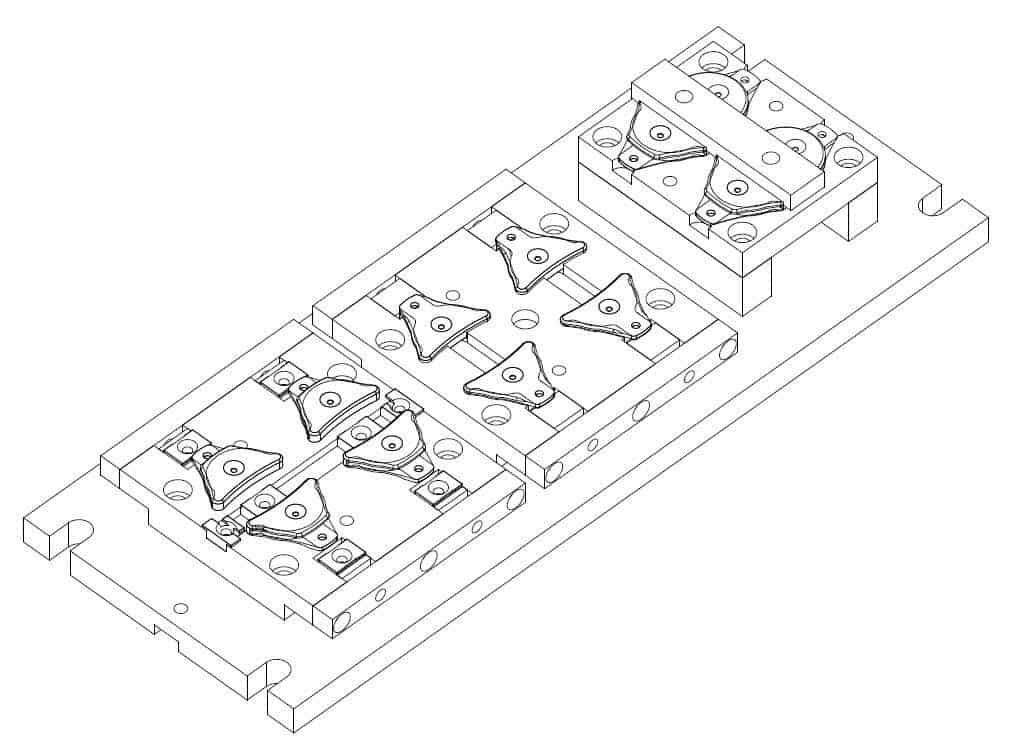

Fixture Design

Martin.mu — Thu, 06 Jun 2024 12:48:38 +0000

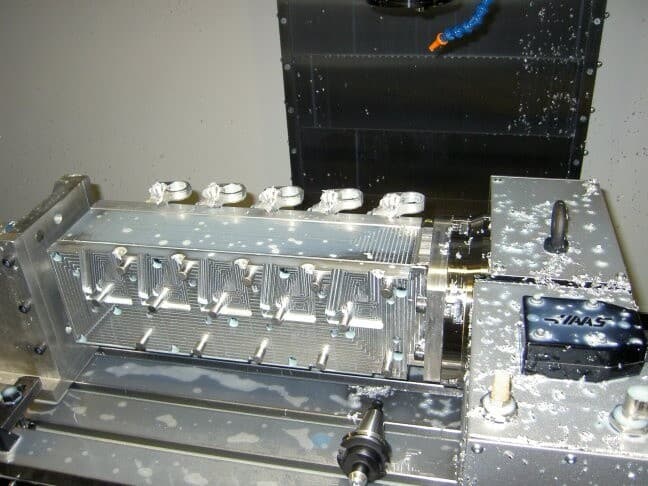

Fixtures for CNC machining are very important. Fixture design is generally in parts machining process in accordance with the specific requirements of one process. In the process of formulating the technology, we will take the workability of fixture into consideration, and when designing the fixture, modification suggestions can be put forward to the process if necessary. The design quality of fixture should be measured by whether it can steadily ensure the processing quality of the workpiece, improve production efficiency, reduce production costs, convenient chip removal, safe operation, easy maintenance and so on.

The basic principles of fixture design:

1.To meet the stability and reliability of workpiece positioning in the process
2.There is sufficient load or clamping force to ensure that the workpiece on the fixture processing process smoothly.
3.Meet the requirements of simple and fast operation in the clamping process
4.Fragile parts must be easily replaceable, and it is best not to use other tools when conditions are sufficient
5.Meet the reliability requirements of repeated positioning of fixture in the process of adjustment or replacement.
6.Avoid complex structure and high cost fixtures
7.Use as much standard parts as components as possible.
8.Form the systematization and standardization of products in-house.

Basic knowledge of fixture design

A good machine tool fixture must meet the following basic requirements:

1.Ensure the machining accuracy of workpiece, First of all, the positioning datum, positioning method and positioning element must be selected correctly, positioning error analysis should be carried out if necessary, attention should also be paid to the influence of the structure of other fixture parts on the machining accuracy to ensure that the fixture can meet the machining accuracy requirements of the workpiece.
2.The complexity of fixtures used to improve production efficiency should be adapted to the capacity situation, and various fast and efficient clamping mechanisms should be adopted as far as possible to ensure convenient operation, shorten the auxiliary time and improve production efficiency.
3.The structure of fixture with good process performance should be simple and reasonable, easy to manufacture, assembly, adjustment, inspection, maintenance and so on.

4.Good performance fixture should have enough strength and stiffness, operation should be simple, labor-saving, safe and reliable. Under the premise of objective conditions and economic applicability, pneumatic, hydraulic and other mechanical clamping devices should be used as far as possible to reduce the labor intensity of operators. Fixture should also be convenient for chip removal, When necessary, the chip removal structure can be set up to prevent the chip from destroying the positioning of the workpiece and damaging the tool, and prevent the chip from accumulating a lot of heat and causing the deformation of the process system.
5.Cost-efficient fixture should adopt standard components and standard structure as much as possible, and strive to have simple structure and easy to manufacture, so as to reduce the manufacturing cost. Therefore, the design should consider order volume and capacity situation, make technical and economic analysis of fixture scheme if necessary to improve the economic benefit of fixture in production.

The standardization of fixture design overview

Outline of auxiliary fixture design

1.Basic rules & steps of auxiliary fixture design.

Auxiliary fixture design included below contents:

a)Design order, FG drawing, blank drawing and processing route, related technical data, etc. To understanding the machining technical requirements for each process, such as positioning, clamping solution, processing contents of previous process, blank status, machining machine, cutting tools, inspection tools, machining allowance and so on.

b)Understand the requirements of auxiliary fixture for mass production;

c)Understand the mainly technical parameters, performance, specifications, accuracy and the contact size for operation table with auxiliary fixture.

d)The storage status of raw material to build auxiliary fixture

Problems to be considered in fixture design

Fixture design structure is simple generally, especially with the use of hydraulic fixture changing, the original mechanical structure is greatly simplified, if the design process is not considered in detail , unnecessary trouble will appear:

a)Working allowance of workpiece to be processed.If the blank size is too large, it will interfere with the fixture. So before the fixture design blank drawings must be available.
b)The chip removal smoothness of the fixture. Due to the limitation of machine tool processing space, the gap between parts and parts should be as small as possible, then the iron chip generated in the process of processing in dead corner deposit of the fixture will be ignored sometimes, including chip fluid flow is not smooth, which bring inconvenience to subsequent processing. Therefore, in initial design of fixture should take these problems into consideration, after all, fixture is used to improve efficiency and make operation convenient.
c)The overall openness of the fixture. Ignoring the fixture openness makes it difficult to install and mounted for the operator.Time-consuming and laborious, it is a design big taboos.

d)The basic theoretical of fixture design. Each fixture has to undergo countless clamping and unclamping actions, it could meet the requirements at beginning, but the fixture should have its accuracy lifespan, so do not design the fixture that contrary to the machining principle. Even if it is lucky they can be short use. While they must be poor lifespan and cyclic use. A good design should stand the temper of time.
e)Positioning components’ replace-ability. The positioning components are worn severely. So we have to consider about the fixture’s quick and convenient replacement. It is better not to design a larger fixture.
Accumulation of fixture design experience is very important. Sometimes, design is a individual thing, but it is related thing in actual application, so good design is a process of continuous accumulation and summarization.

The post Fixture Design appeared first on DDPROTOTYPE.
